SR-F1D

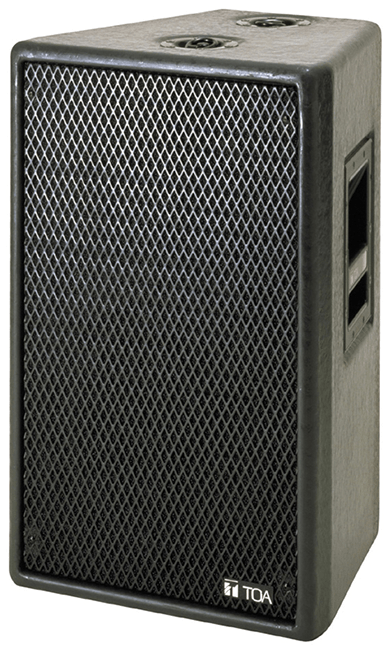

The SR-F1D is compact integrated speaker system for use in sound reinforcement applications with an emphasis on quality sound and durability, and for easy transportation. Recommended digital speaker processor is the DP-SP3 (option).

Enclosure Bass-reflex type
Power HandlingCapacity Continuous pinknoise: 120 W (Low frequency)(*1), 80 W (High frequency)(*2)
Continuous program: 360 W (Low frequency), 240 W (High frequency)
Rated Impedance Low frequency: 8 Ω, High frequency: 16 Ω
Sensitivity Low frequency: 98 dB (1 W, 1 m), High frequency: 110 dB (1 W, 1 m)
Frequency Response 70 Hz - 20 kHz (when recommended parameters are applied by the optional DP-SP3)
Crossover Frequency 1 kHz (when recommended parameters are applied by the optional DP-SP3)
Speaker Component Low frequency: One 30 cm dia cone-type
High frequency: CD horn (60゜ horizontal by 40゜ vertical) plus compression driver
Input Connector Neutrik NL4MPR
Finish Enclosure: urethane coating, gray
Front grille: Black, paint
Dimensions 390 (W) × 619 (H) × 364 (D) mm
Weight 38 kg
